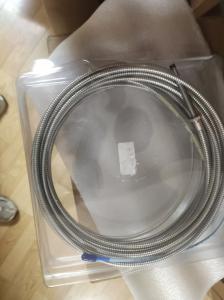

330130-040-00-05 | Bently Nevada 3300 XL Extension Cable in stock
Part Number: 330130-040-00-05 Model: 3300 XL Standard Extension Cable
Brand: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 330130 | 3300 XL Standard Extension Cable |
| Cable Length Option | 040 | 4.0 metres (13.1 feet) |
| Connector Protector and Cable Option | 00 | Standard cable |
| Agency Approval Option | 05 | Multiple Approvals |
- Availability: In Stock
- Estimated Lead Time: Usually Ships in 1 - 5 Working Days
- Shipping Weight: 1 Kg
The 3300 5mm Proximity Transducer System includes:
- 3300 5mm probe
- 3300 XL 5mm extension cable
- 3300 XL 5mm proximity sensor
BENTLY NEVADA 3300XL 8 mm Eddy Current Sensor, 330104 with 5 m and 9 m Extension Cables Vibration Displacement Rotation Speed Probe
330104-00-04-50-02-00
330104-00-05-50-02-00
330104-00-06-50-02-00
330104-00-07-50-02-00
330104-00-08-50-02-00
The Bentley bently3300XL 8 mm eddy current sensor vibration probe system monitors the vibration of the following large and medium-sized rotating machinery: steam turbines, hydraulic turbines, fans, compressors, air separators, turbo-expanders, motors and generators, exciters, gearboxes, pumps and more.
Widely used in power plants, chemical plants, oil refineries, iron and steel mills, machinery factories, pump factories, fan factories and other enterprises.
bently3300 XL 8 mm eddy current sensor system composition:
bently3300 XL 8 mm probe
bently3300 Extension Cable
bently3300 preamplifier
The bently3300 XL is used for shaft vibration, shaft displacement, key phasing, and speed measurements on bearing machinery and complies with Standard 670 as established by the American Petroleum Institute (API). bently3300 XL preamplifiers are highly immune to radio interference, even when mounted in a fiberglass enclosure, and are not susceptible to interference from nearby radio signals. bently3300 XL preamplifiers are designed for use in a wide range of applications, including industrial and commercial applications.
Receives signals from non-contact bently 3300 XL series 5mm, 8mm eddy current probes and extension cables. Frequency response is 0-10kHz using three core field link shielded cable with a length of 305 meters from the 3300 XL preamplifier to the monitor. Power supply -17.5Vdc to -26Vdc, current 12mA, linear range 2mm, sensitivity 7.87V/mm (200mV/mil) ±5%, weight of preamplifier 246g, temperature range of preamplifier 330180-50-00 Operating temperature -35°C to +85°C.
The 3300 XL Preamplifier 330180-AXX-BXX is available in overall lengths of 1m, 5m and 9m systems, the 5m probe can only be used with the 5m preamplifier. Mounting options are rail mounted and panel mounted, and approval agency options are non-required and hazardous area approved.
Commonly used Bentley bently 3300XL 8 mm eddy current sensor vibration probe models are listed below:
330104-00-05-50-02-00
330104-00-06-50-02-00
330104-00-07-50-02-00
330104-00-08-50-02-00
330104-00-05-90-02-00
330104-00-06-90-02-00
330104-00-07-90-02-00
330104-00-08-90-02-00
Connecting Extension Cables and Preamplifiers
330180-50-00
330180-50-CN
330180-51-00
330180-51-CN
330180-90-00
330180-90-CN
330180-91-00
330180-91-CN
330130-040-00-00
330130-040-00-cn
330130-040-01-00
330130-040-01-cn
330130-080-00-00
330130-080-00-00-cn
330130-080-01-00
330130-080-01-CN
Often matched to vibration monitor models:
Quad Channel Vibration Monitor 1900/6
Dual Channel Vibration Monitor 2300/20-CN-00
Single Channel Transmitter 990-05-50-01-00
Keyphase Module 3500/25-01-01-00
Vibration Displacement Module 3500/40M-01-00
Vibration Displacement Velocity Acceleration Module 3500/42M-01-00
Expansion Differential Thermal Expansion Monitoring Module 3500/45M-01-00
Rotational Speed Measurement Module 3500
