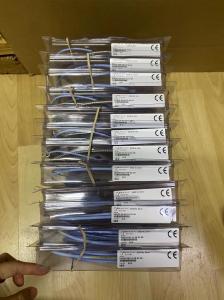

330105-02-12-05-02-05 Bentley NEVADA 3300 XL 8 mm probe in stock
The 3300 XL 8 mm Proximity Transducer
System consists of:
• One 3300 XL 8 mm probe,
• One 3300 XL extension cable1, and
• One 3300 XL Proximitor* Sensor2.
The system provides an output voltage that is
directly proportional to the distance between
the probe tip and the observed conductive
surface and can measure both static (position)
and dynamic (vibration) values. The system’s
primary applications are vibration and position
measurements on fluid-film bearing machines,
as well as Keyphasor* reference and speed
measurements3.
The 3300 XL 8 mm system delivers the most
advanced performance in our eddy current
proximity transducer systems. The standard
3300 XL 8 mm 5-meter system also fully
complies with the American Petroleum
Institute’s (API) 670 Standard (4th Edition) for
mechanical configuration, linear range,
accuracy, and temperature stability. All 3300
XL 8 mm proximity transducer systems provide
this level of performance and support
complete interchangeability of probes,
extension cables, and Proximitor sensors,
eliminating the need to match or bench
calibrate individual components.
3300 XL 8 mm Proximity Probes, Metric:
3300 XL 8 mm Reverse Mount Probes
330105-02-12-CXX-DXX-EXX, 3/8-24 UNF
C: Total Length Option
0 5 0.5 meter (1.6 feet)
1 0 1.0 meter (3.3 feet)
1 5 1.5 meter (4.9 feet)
2 0 2.0 meters (6.6 feet)
5 0 5.0 meters (16.4 feet)
9 0 9.0 meters (29.5 feet) Note: 5-meter probes are designed for use with the 5-
meter Proximitor sensor only.
D: Connector Option
0 2 Miniature ClickLoc coaxial connector
1 2 Miniature ClickLoc coaxial
connector, FluidLoc cable
Note: The FluidLoc cable option –12 is not necessary
on the vast majority of 330105 and 330106 installations
due to the presence of the probe sleeve. Consider
carefully the application before ordering the FluidLoc
cable option for these probes.
E: Agency Approval Option
0 0 Not required
0 5 CSA, ATEX, IECEx Approvals
